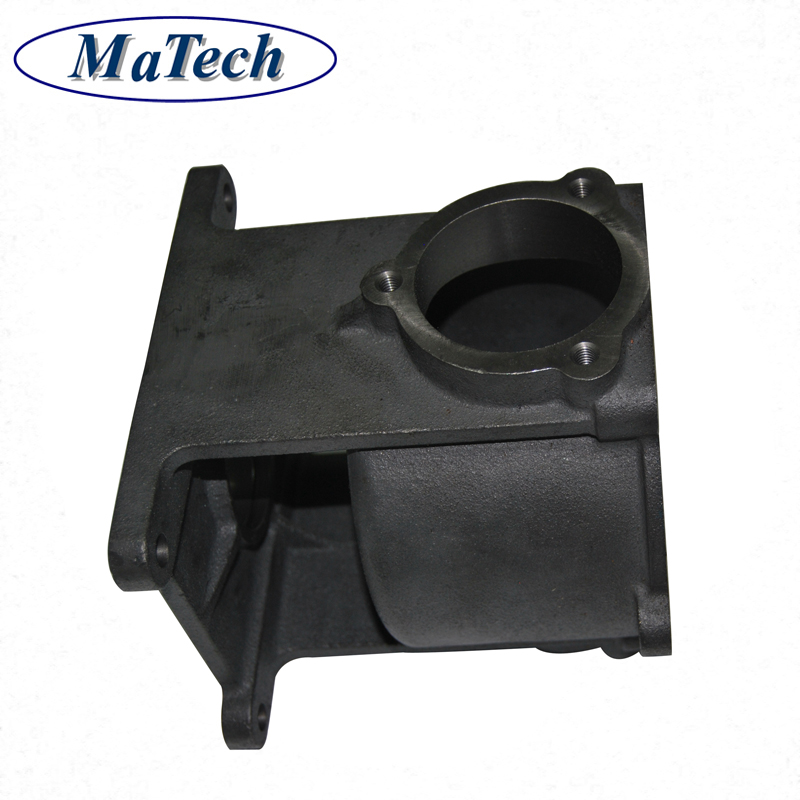

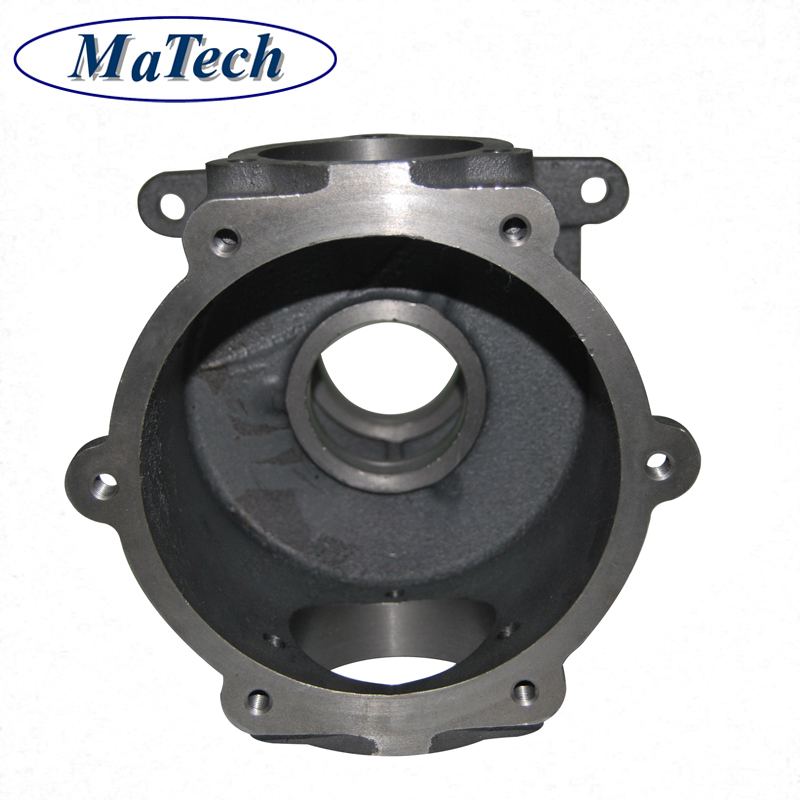

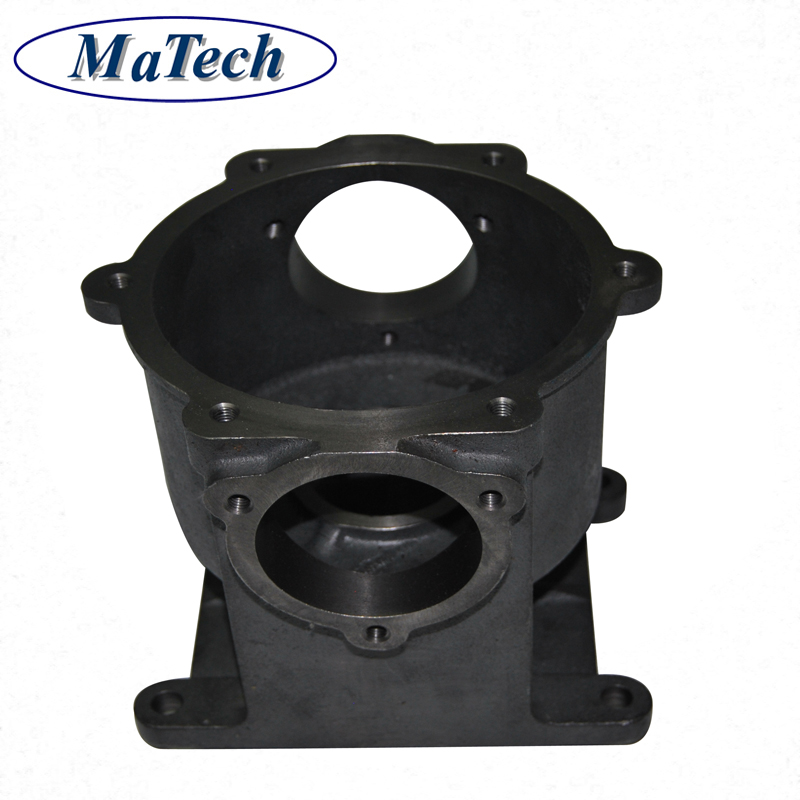

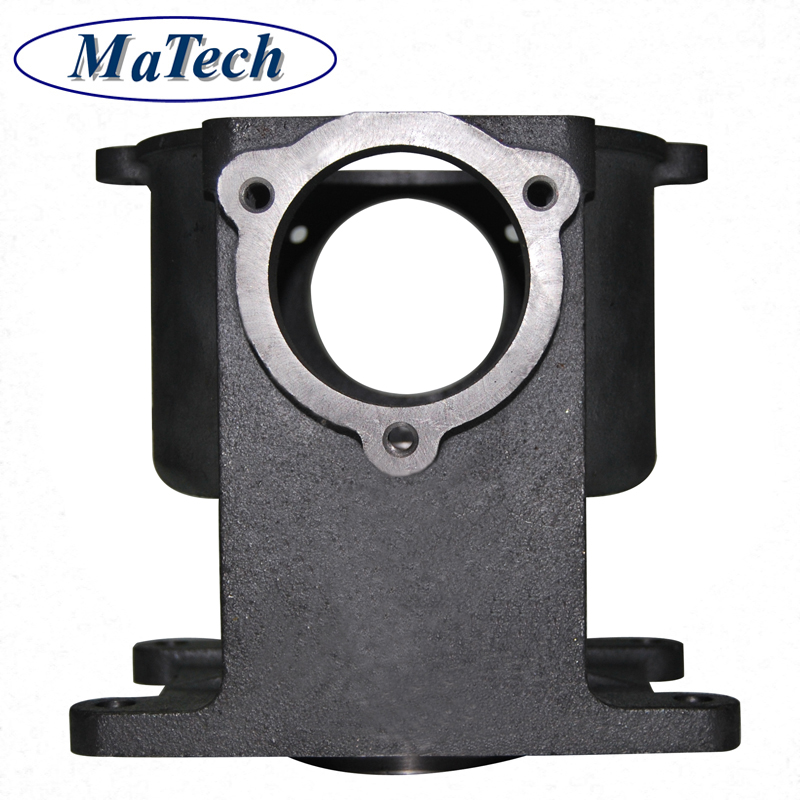

Precision Metal Products Ductile Sand Cast Iron Foundry

Product Item: Custom iron casting
Category: Iron Casting
Views: 1821
Material Grade :GGG40, GGG50, GGG60 etc. As customers request
Process : Sand Casting+ Machining
Package for iron casting :Multiplayer wood box with big plastic bag inside
Lead Time :45 days for iron casting

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL

Product Description

Item Name	Precision Metal Products Ductile Sand Cast Iron Foundry
General Products/ Application	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Main blank Process for Casting	Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.
Blanks Tolerance -Casting Tolerance	CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process
Applicable Material	See Table Below (Ductile Iron Casting, Grey Iron Casting) OR According to customer requirement
Casting Blank Size /Dimensions	2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement
Casting Blank Weight	Range from 0.01kg-1000kg for casting iron
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment	Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc.
MOQ for mass production	For cast iron: 100pcs For Machining: 50pcs
Lead Time	About 45 days for Cast Iron

Our Team

Our Team are a big happy family, we not only supplying products to our customers , but also trying to build more values to our customers’ business by introducing suitable solution or technology to our customers with compromising parts’ function, technologies’ advantage, realization feasibility, cost control and quality reliability.

Our Core Value is Sincerity Quality Competence !!!

Packing & Delivery

FAQ

1. Are you a manufacturer or a trading company?

We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?

If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?

Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?

Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What’s your quality control device in house?

We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
