Mass Production Metal Parts Grey Iron Casting Foundry

Product Item: custom iron casting foundry
Category: Iron Casting
Views: 1660
Material:GGG40, GGG50, GGG60 etc.
Process: iron casting foundry+ machining
iron casting foundry:Multiplayer wood box/pallet,with big plastic bag inside
Lead Time for iron casting foundry : 45 days

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL

Item Name	Mass Production Metal Parts Grey Iron Casting Foundry
General Products Application	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
Main blank Process for Casting	Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.
Blanks Tolerance -Casting Tolerance	CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process
Applicable Material	(Ductile Iron Casting, Grey Iron Casting) OR According to customer requirement
Casting Blank Size /Dimensions	2 mm-2000mm / 0.08inch-79inch , according to customer requirement
Casting Blank Weight	Range from 0.01kg-1000kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment	Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc.
MOQ	For cast iron: 100pcs For Machining: 50pcs
Lead Time	45 days from the receipt date for iron casting

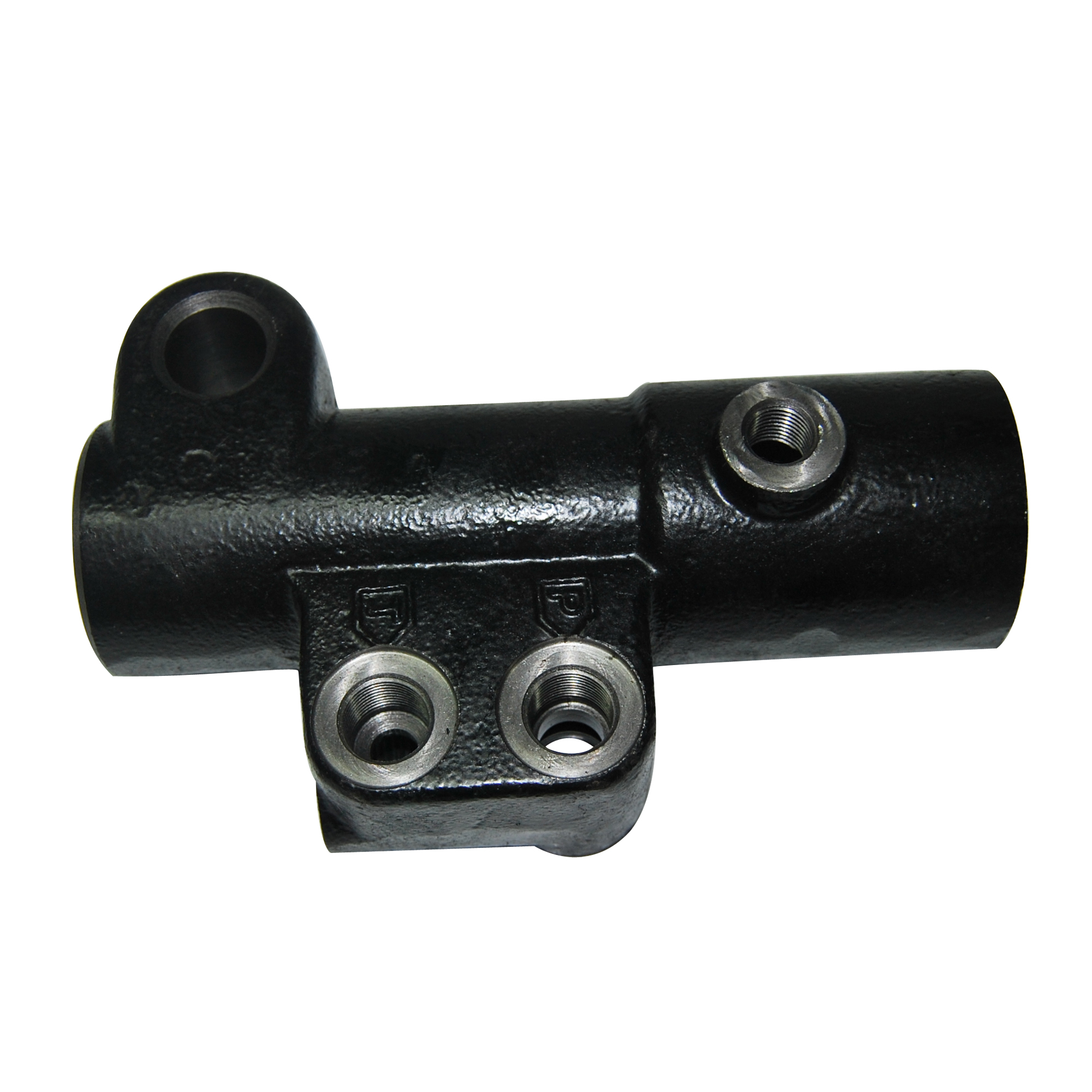

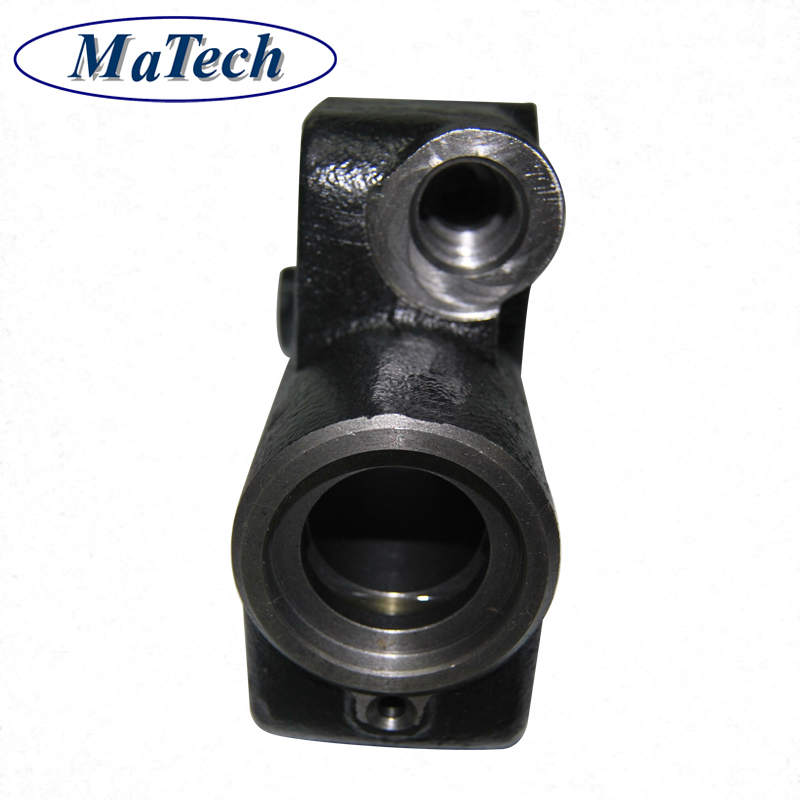

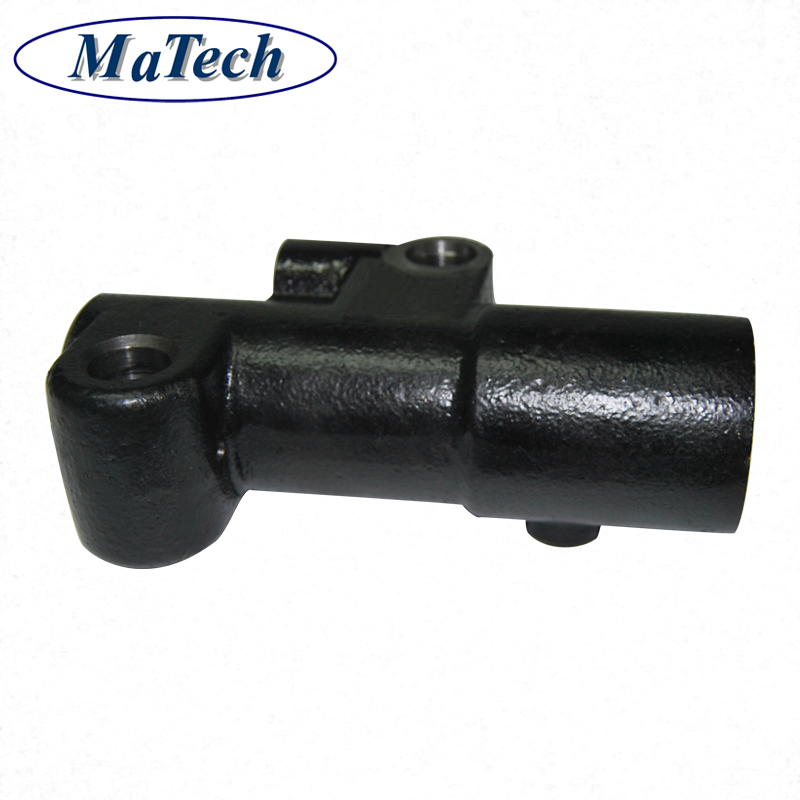

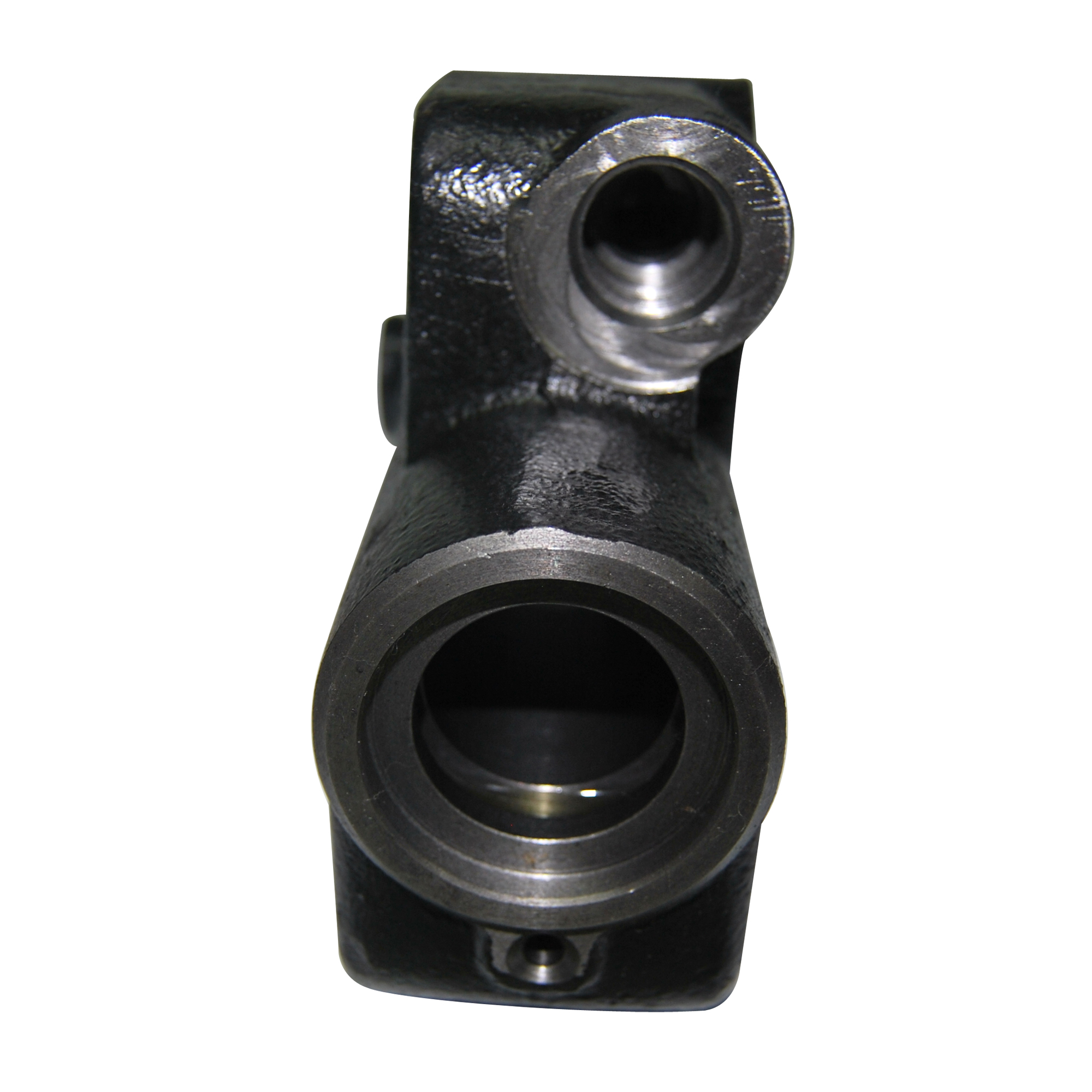

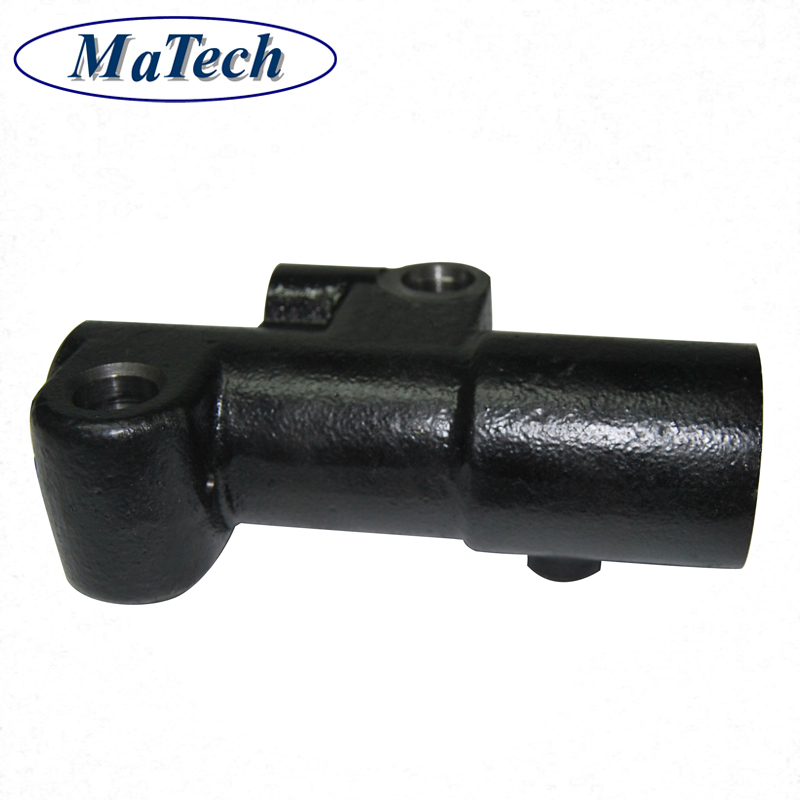

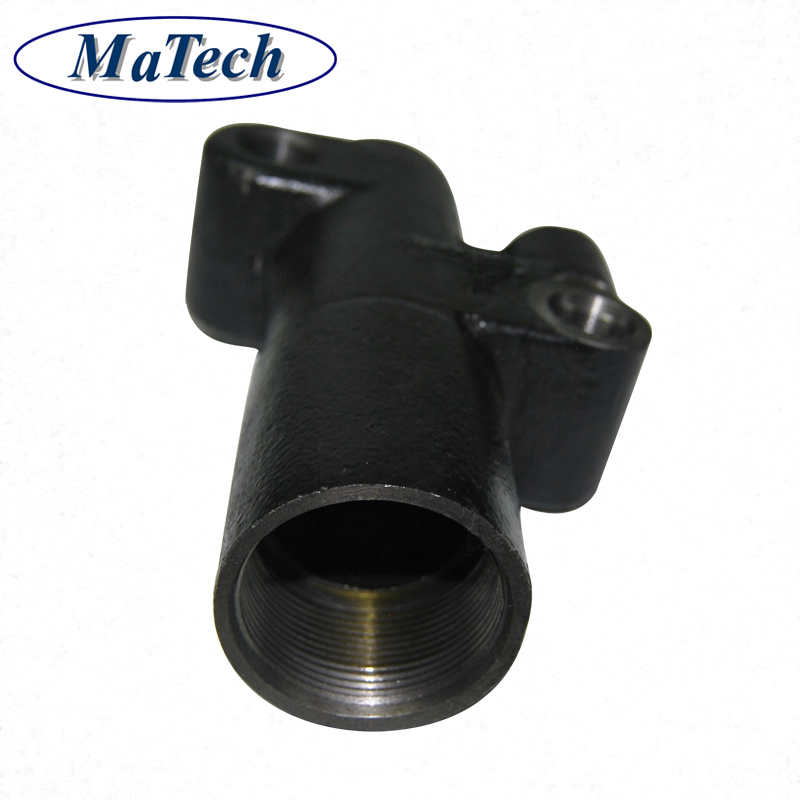

Detailed Images

Factory Show

Shanghai Matech Machinery Manufacturer Co., Ltd. specializes in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system.

With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house we are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market .

To satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies. These blanks solutions and technologies include processes of Iron Casting, Steel Casting, Stainless Steel Casting, Aluminum Casting and Forging.

During the early involvement of the customer's design process we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach. You are welcome to contact us for technical enquiry and business cooperation.
