Metal Products Precision Iron Steel Casting Foundry

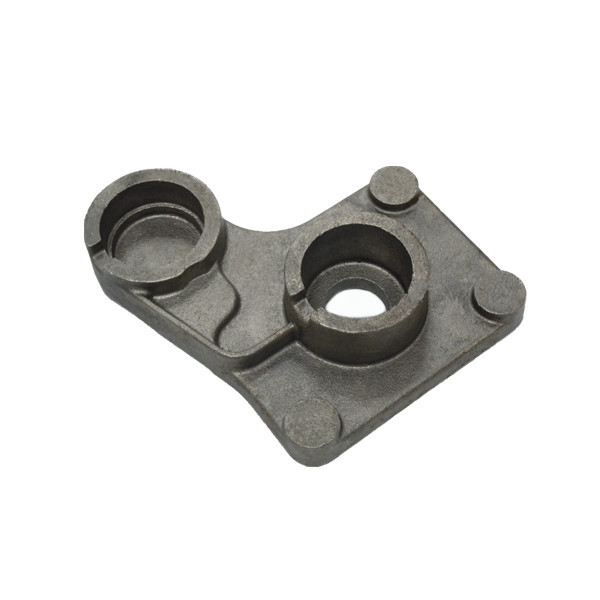

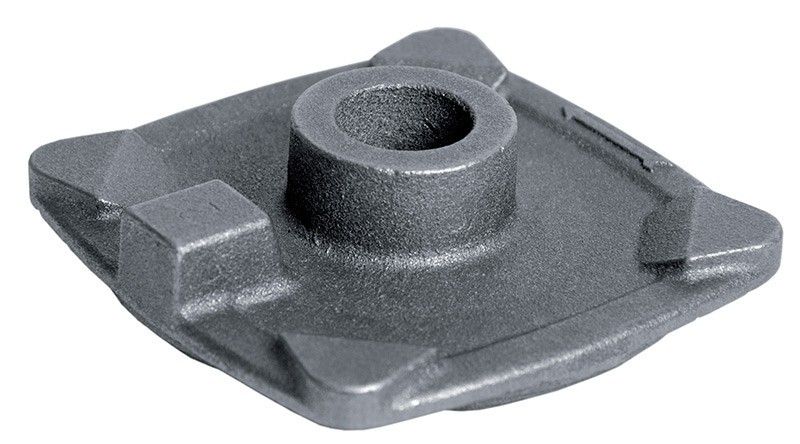

Product Item: Custom Steel Casting
Category: Steel Casting
Views: 945
Material: 20CrMnTi, 30Mn5, ASTM5140, 20MnCr5
Process : Lost Wax Casting+ Machining
Package for Steel Casting: Multiplayer wood box/pallet, with big plastic bag inside
Lead Time :45 days for Steel Casting

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL

Product Description

Item Name	Metal Products Precision Iron Steel Casting Foundry
General Products Application/Service Area	Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

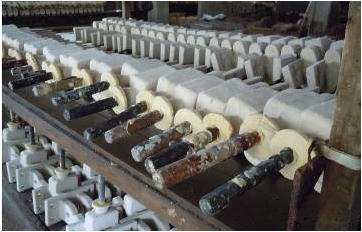

Main Blank Process for Steel Casting	Investment casting (wax mold made by middle temperature wax) /Precision casting ; Lost Wax Casting (wax mold made by low temperature wax)/ Precision casting;
Blanks Tolerance -Casting Tolerance	CT7-8 for Lost wax Casting Process CT4-6 for Investment casting Process
Applicable Material for casting	Carbon steel, Low Carbon steel, middle carbon steel, G35, G45, WCB, WCA, WCC, ISO 340-550, Alloy Carbon steel: G25CrMo4, Heat Resistant Steel, Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L. Copper alloy Brass: HPb59-1, CuZn39Pb1/2/3, CuZn40, C36000, C37710, C67400, etc. Aluminum Bronze: QAl11-6-6, CuAl10Fe2/3, CuAl10Ni5Fe5, C65500, C95600, C87500. etc. Sn Bronze: CuPb5Sn5Zn5, C83600, C84400, C86500. etc. OR According to customer requirement
Casting Blank Size /Dimensions	2 mm-600mm / 0.08inch-24inch according to customer requirement
Casting Blank Weight	Range from 0.01kg-85kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment	Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting,
MOQ	For casting: 100pcs For Machining: 50pcs
Lead Time	45 days from the receipt date of deposit for steel casting

Our Customers

Packing & Delivery

FAQ

1. Are you a manufacturer or a trading company?

We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?

If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?

Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?

Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What’s your quality control device in house?

We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
