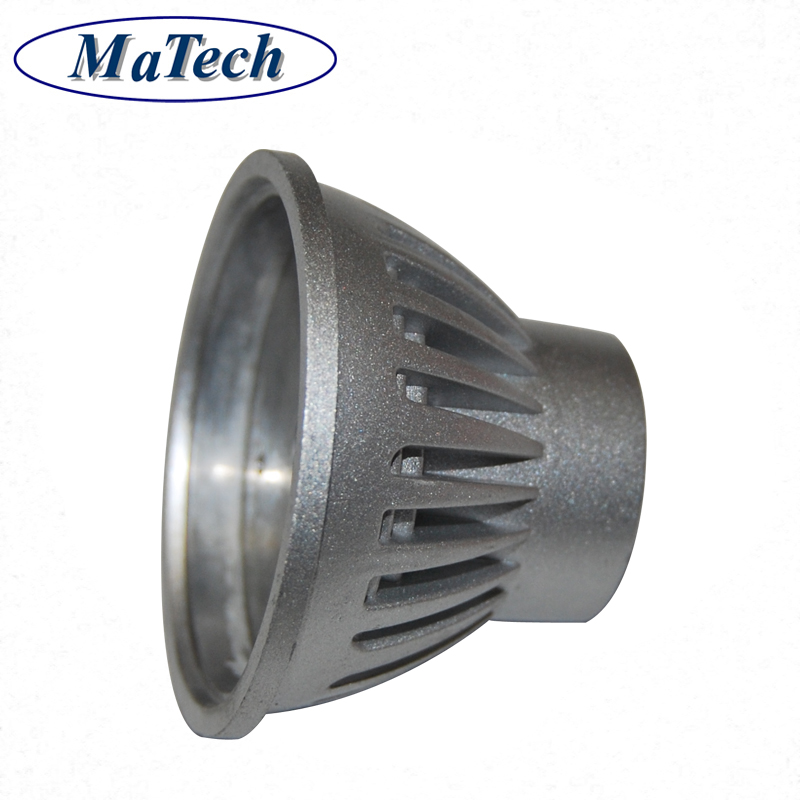

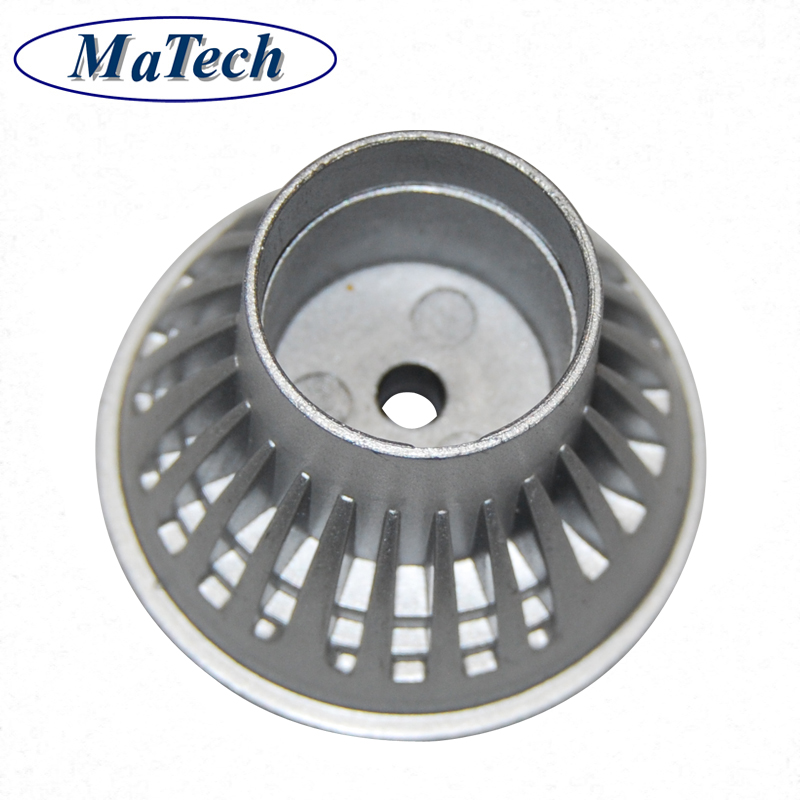

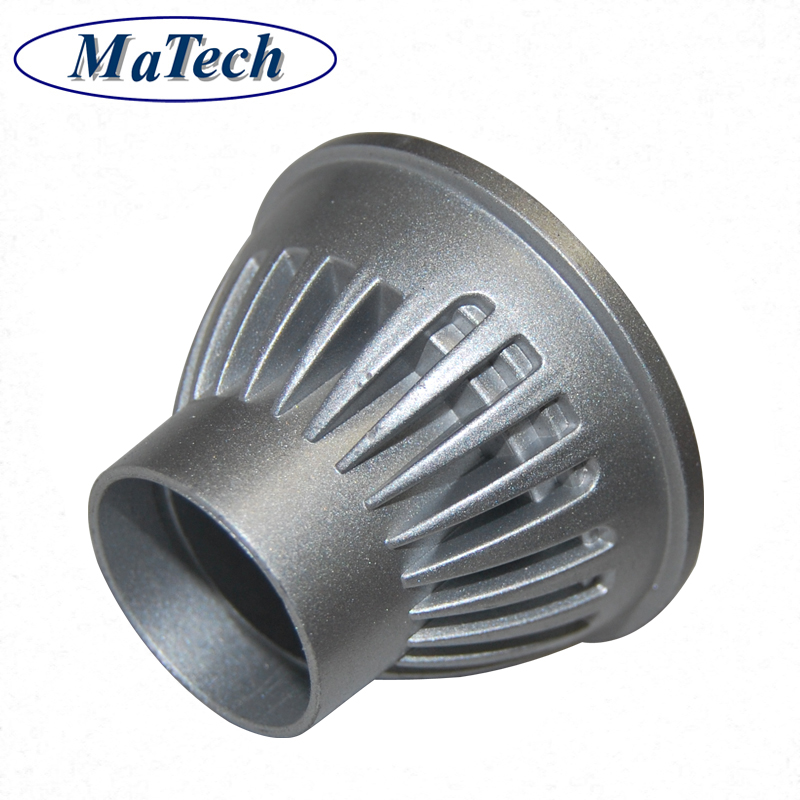

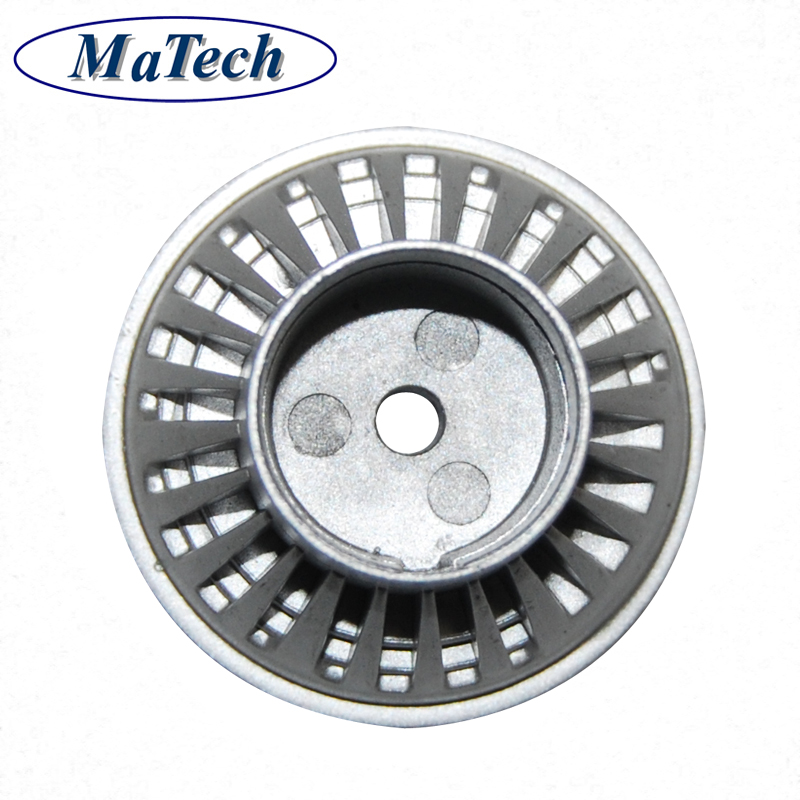

Custom Industry Parts Led Housing Aluminum Die Casting

Product Item: custom aluminum csating
Category: Aluminum Casting
Views: 1337
Material:A356, AlSi7Mg, ZL101, ADC12, A-S7G
Process :Casting+ Machining
Package for aluminum casting : Multiplayer wood box/pallet, with big plastic bag inside
Lead Time :45 days for aluminum casting

You can make an inquiry about this product.
Your e-mail will not be leaked.

PRODUCT DETAIL

Product Description

Item Name	Custom Industry Parts Led Housing Aluminum Die Casting
General Products Application	Metal Prts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve, valve housing ,Fitting , flange, wheel, chains etc.
Main blank Process for Aluminum Casting	Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting, High Pressure Casting/Sand Casting, Extrusion Casting etc.
Blanks Tolerance -Casting Tolerance	CT4-6 for Permanent Molding, Die Casting, CT 9-11 for Sand Casting
Applicable Material for casting	A356.0/ZL101,GAlSi7Mg (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy, Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302, Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2, Or according to customer requirements
Casting Blank Size /Dimensions	2 mm-1500mm / 0.08inch-60inch , or according to customer requirements
Casting Blank Weight	Range from 0.01kg-50kg
Applicable Machining Process	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality	Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment	T5~T6
Applicable Finish Surface Treatment	Shot/sand blast, polishing, Primer Painting , Powder coating, ED- Coating, Finish Painting, Anodize (White or Black Color)
MOQ	For casting parts: 100pcs For Machining parts: 50pcs
Lead Time	45days from the receipt date of deposit for sand casting

Our Customers

Packing & Delivery

FAQ

1. Are you a manufacturer or a trading company?

We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.

2. How can I get some samples?

If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.

3. Can you make casting according to our drawing?

Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?

Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What’s your quality control device in house?

We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
